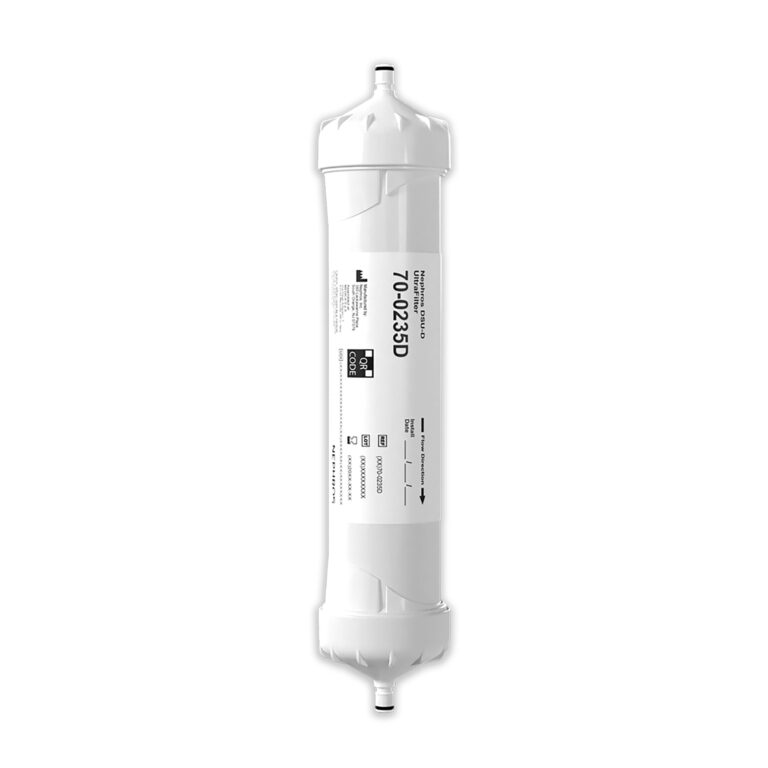

    Nephros Dual Stage Ultrafilter

    Nephros Dual Stage Ultrafilter

    The Nephros Dual Stage UltraFilter Capsule helps you achieve the low levels of contaminants per the AAMI microbiological standards. With its 0.005 micron filter pore size, the Nephros DSU removes a spectrum of bacteria, viral agents and biological toxins (including endotoxin) down to the required levels of the current standards.

    Features
    • Withstands multiple disinfection cycles without degrading
      the fibers
    • Acts as a firewall for the patient by blocking microbiological
      contaminants like no other filter of this nature can
    • Provides up to 12 months of performance life in frequent use
    • Proven durability combined with safety and reliability of true redundant ultra filtration
    • Flow rate 1 gpm @ 15 psi pressure drop
    Specifications

    Sterilization Method: Ethylene Oxide
    Max Inlet Pressure: 75 psi (5 bar)
    Filter Membrane: Medisulfone®
    Material: Polysulfone
    Pore Size: 0.005 µm
    Bacteria Retention: >1011 (B. diminuta)
    Virus Retention: >108 (PhiX-174)
    Endotoxin Retention: >105 EU/mL
    Dimensions In. (L x D): 13 x 2.5
    Connections: CPC (APC)
    Recommended Replacement: One year
    *Medisulfone® is a registered trademark of Medica S.p.A.

    For use with Portable RO’s
    Some portable RO’s have bacteria build up due to infrequent use. The Nephros DSU provides additional security in an acute setting to ensure the highest quality water for the patient.

    For use with Individual Dialysis Stations
    Endotoxin and/or bacteria can colonize in the RO water loop. The Nephros at each wall box is a final safeguard to ensure that the water going to the dialysis machine is ultrapure.

    Disinfection

    The DSU is compatible with most common water loop disinfection chemicals it can be subject to the following disinfectants for 1 year of weekly exposures with no degradation in safety or efficacy.
    1% Renalin, 1% Bleach, 2% Vinegar, 176°F Water, Hydrochloric Acid/Sodium Hydroxide (monthly).

    Certifications
    • FDA 510(k) Cleared for the dialysis market
    Models

    0020-0001: Nephros Field Install Kit & Capsule for MROS, MRO1 and other portables
    0020-0004: Nephros Field Install Kit & Capsule for Wall Box
    20-0009: Nephros Capsule in Sterile Sleeve
