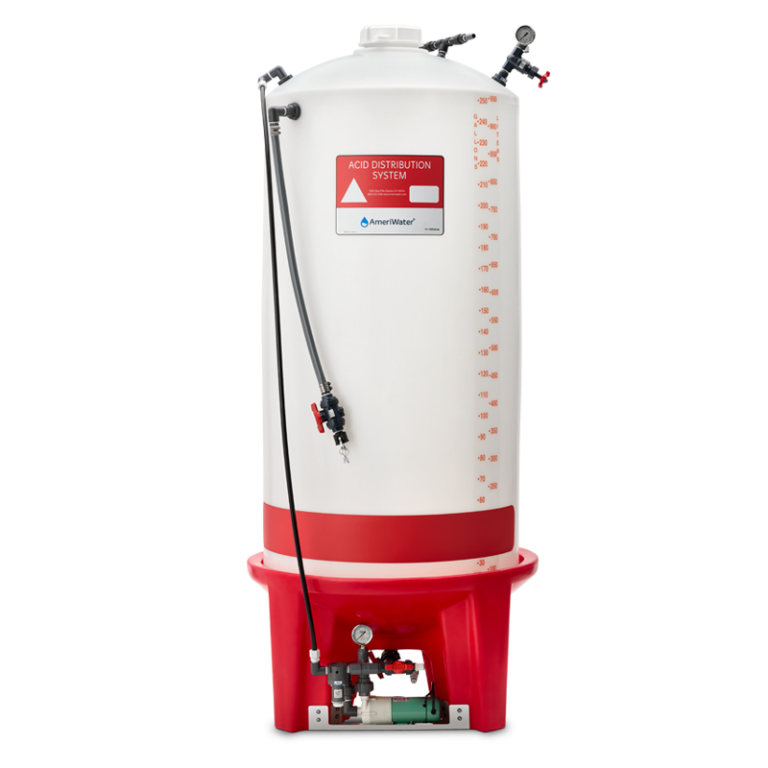

Acid Concentrate Distribution System
AmeriWater’s Acid Concentrate Distribution Systems help minimize your maintenance and maximize your up-time through a unique design and optimal materials. Our Acid Concentrate Distribution Systems are available in capacities of 130, 300, and 500 gallons.
Features
Specifications
Certifications
Features
- A virgin polyethylene tank with flat bottom complete with connections for fill, pump feed, and loop return.
- Piping, true union valves and pressure reducing valve are PVC schedule 80.
- Pump is a magnetic drive, medium head, poly design, with mounting frame.
- All stainless steel pressure gauge and PVC needle valve for flow and pressure regulation.
- Lightly pressurized distribution and recirculation provides steady, consistent delivery, and decreases air lock potential.
Specifications
| Model | Description | Tank Dimensions In. (W x H) | Shipping Weight Lbs. |
| 00ASP | Pump Assembly Only | n/a | 25 |
| 00AS130 | 130 Gallon Tank & Pump Assembly | 23 x 76 | 120 |
| 00AS300 | 300 Gallon Tank & Pump Assembly | 35 x 85 | 135 |
| 00AS500 | 500 Gallon Tank & Pump Assembly | 46 x 76 | 155 |
| 00ASRF | Acid Remote Fill Station Assembly | n/a | 20 |
| Note: AmeriWater recommends distribution loop to be installed using ½” OD polyethylene tubing to minimize bacteria growth. |
|||
Certifications
- FDA 510K / ISO 13485 Registered Medical Device
