AmeriWater Capsule Sterile Processing Water System – 800 – 2400 GPD

Water quality in ambulatory surgery centers (ASC) plays a critical role. High standards of cleanliness must be maintained to avoid potential fines. While this is motivation to follow a higher standard of care, the safety and well-being of patients, should always be the primary driver.

By implementing AmeriWater’s ASC all-in-one water system, facilities will experience optimal ST108 water quality and prolonged lifespans for medical equipment.

This reliable water purification solution is designed with a simplified, space saving footprint and ensures patient well-being and essential ANSI/AAMI ST108:2023 standards are met.

Minimum 25% Space Savings
Plug and Play Water In-and-Out
Regulatory Assurance
Simplified Installation and Maintenance
Lower Startup and Plumbing Costs

Features

Applications

Specifications

Certifications

Accessories

Downloads

Features

Anti-Scalant Injection Feed to Prevent Hard Water Scale on Reverse Osmosis Membranes
AWRO System with:
– Smart monitoring with real-time alarms and system shutdowns
– Programable standby flush
– High-efficiency membranes for top-tier water quality
– Open frame design for ease of serviceability
Polish DI with Silex Deionizer
– Easy DIY resin exchange
– Light indicator signals time for resin exchange
Bypass Options for Continuous Operation During Maintenance or System Shutdown
Storage Tank with Sealed Lid
– Distribution pump sized to meet system requirements with shut down on empty storage tank
– Submicron vent filter
– Distribution loop return manifold
– Pressure relief valve
– Distribution loop return flow meter
– Sample port
– Distribution loop to drain valve
– Internal spray nozzle
Ultraviolet Light
– Controls bacteria proliferation in purified water storage and distribution systems
– Equipped with an online monitor to measure output intensity and alarms when lamp needs replaced
Endotoxin Ultrafiltration
– 0.2 Submicron Endotoxin Cartridge
– Installed post UV to remove endotoxins from the purified water storage and distribution system
Real-Time Remote Monitoring Enabled
– Sends mobile and email alerts
– Key system tracking
– Online dashboard that stores system data and runs reports
Included Installation Kit, Water System Identification Kit, and AAMI ST108 Validation Water Testing
System Can Be Easily Disinfected

Applications

Additional Capsule Views

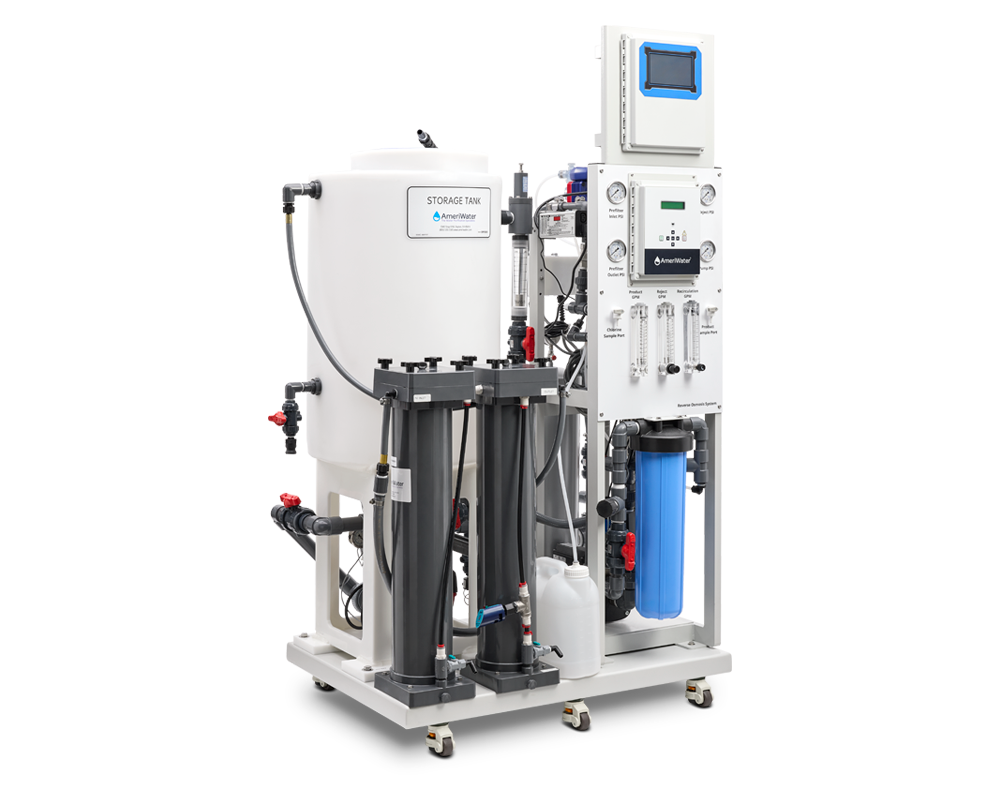

Front Right Angle

Storage Tank
Ozone Port
Flow Meter
Remote Monitoring Panel
RO
Sediment Filter
DI
Anit-Scalant

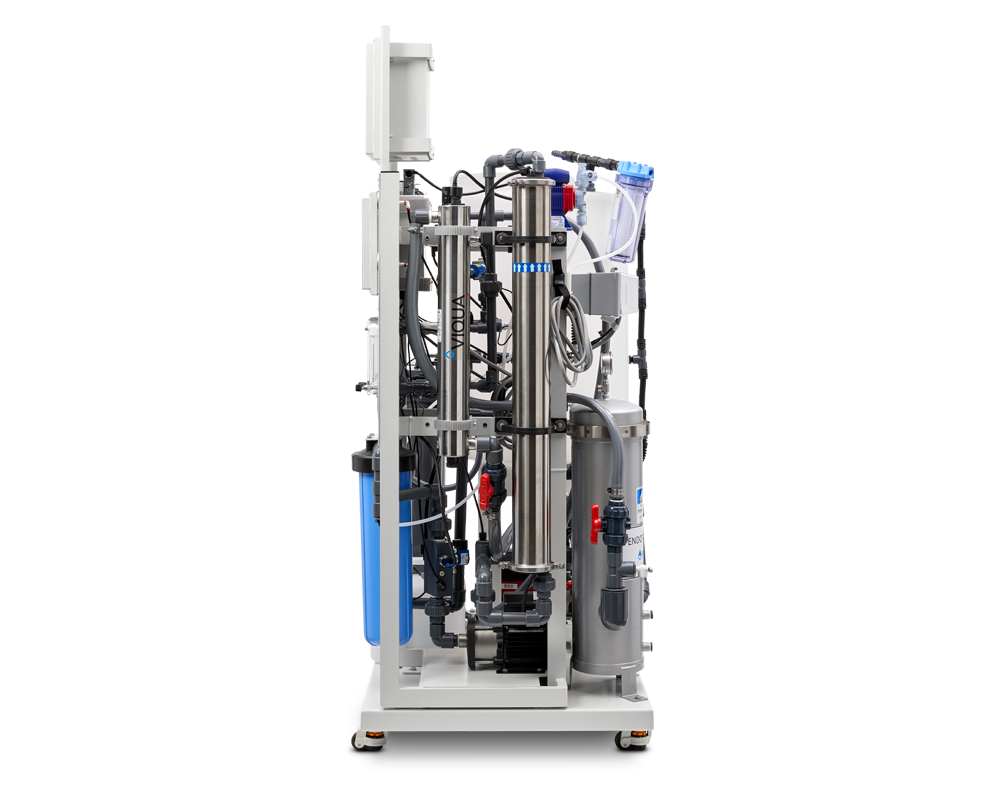

Side View

UV
Endotoxin
Membrane Housing

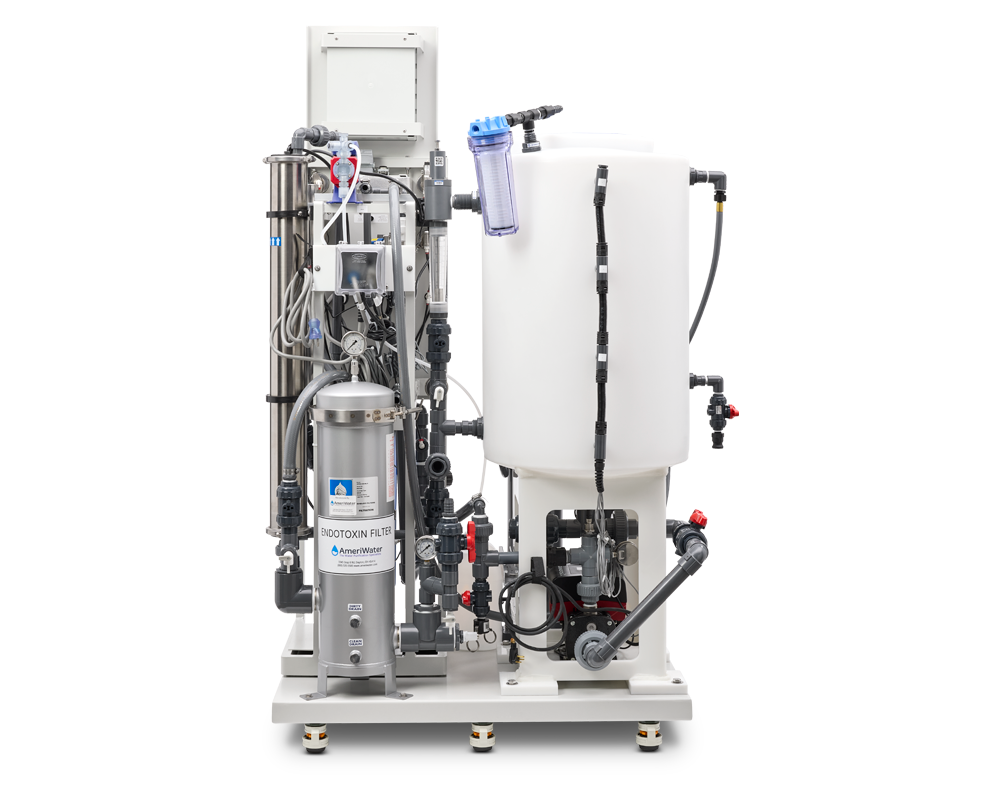

Back View

Endotoxin
Power Box
Loop Out
Loop Return
Feedwater
Anti-Scalant Pump

Specifications

Drain: Floor Drain or Sink Must be Within 4′ of Unit and Able to Accommodate a Flow Rate of 10 GPM
Feed Water Quality: Potable Drinking Water Standards
Feed Water Pressure Min./Max.: 20/80 PSI Dynamic
Projected Rejection: 95% – 98%
Recovery: 50%
Silica: 40 ppm
Silt Density Index: < 5
Turbidity: < 1 NTU
pH Range: 6.0 – 8.5
Iron: 0.1 ppm

Models	00SPDVER800	00SPDVER2400
RO Production Rated Capacity*	800 GPD	2,400 GPD
Number of Membranes	2	1
Storage Tank Volume	55 Gallons	55 Gallons
Distribution Pump Output	10 GPM @ 30 PSI	30 GPM @ 30 PSI
Minimum Feed Flow	2 GPM	6 GPM
Feedwater Temperature	77°F (Blend Valve Recommended)	50°F – 90°F (77°F Nominal Temperature)
Dimensions in Inches (WxDxH)	32 x 41.5 x 67	33.5 x 51 x 79
* Product flow rate varies with temperature and inlet pressure. All models are rated at 77°F with feed water of 1500 mg/l NaCl @ 55 PSI feed pressure and pH of 7.5. As a safety factor use 60% of the rated capacity when sizing or add blend valve to temper the feed water.
