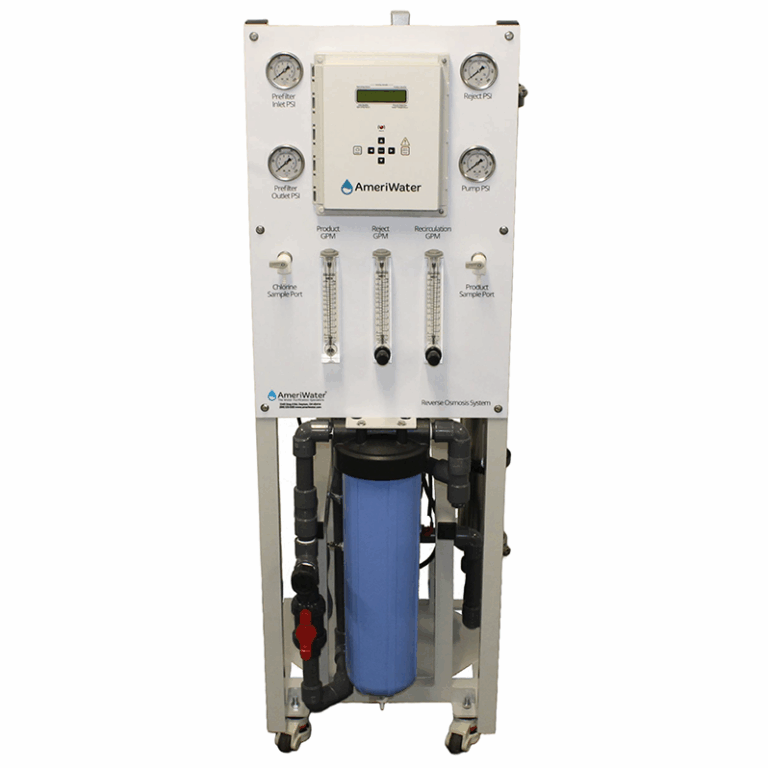

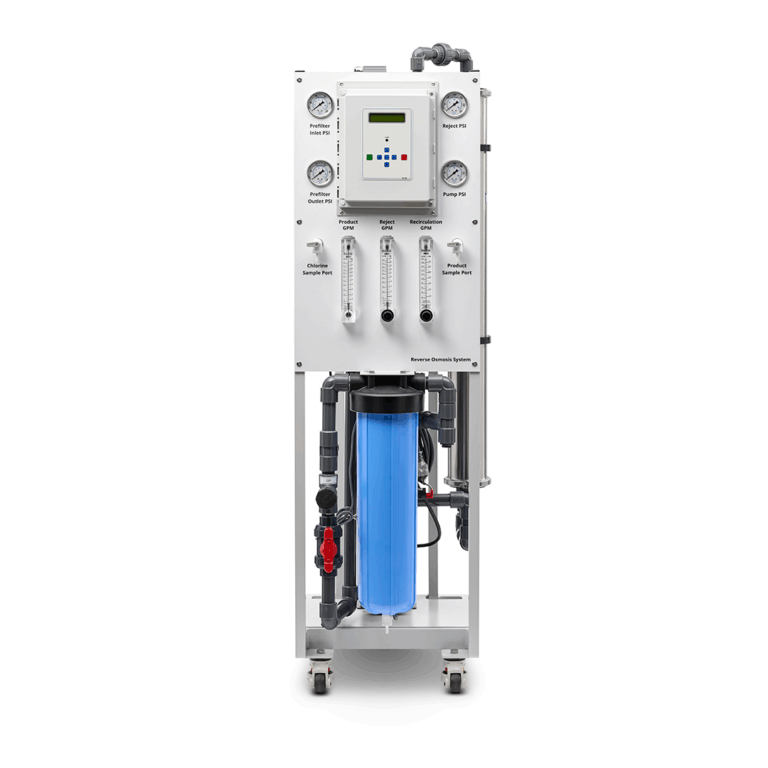

AmeriWater Reverse Osmosis Systems

Optimized for Performance Efficiency and Compliance

The AmeriWater Reverse Osmosis (AWRO) System is specifically designed to support the needs of healthcare customers requiring high-purity water for ANSI/AAMI ST108 compliance. This compact system prioritizes ease of use and includes preventative measures for effective infection prevention for your sterile processing department.

Features

Specifications

Certifications

Accessories

Downloads

Features

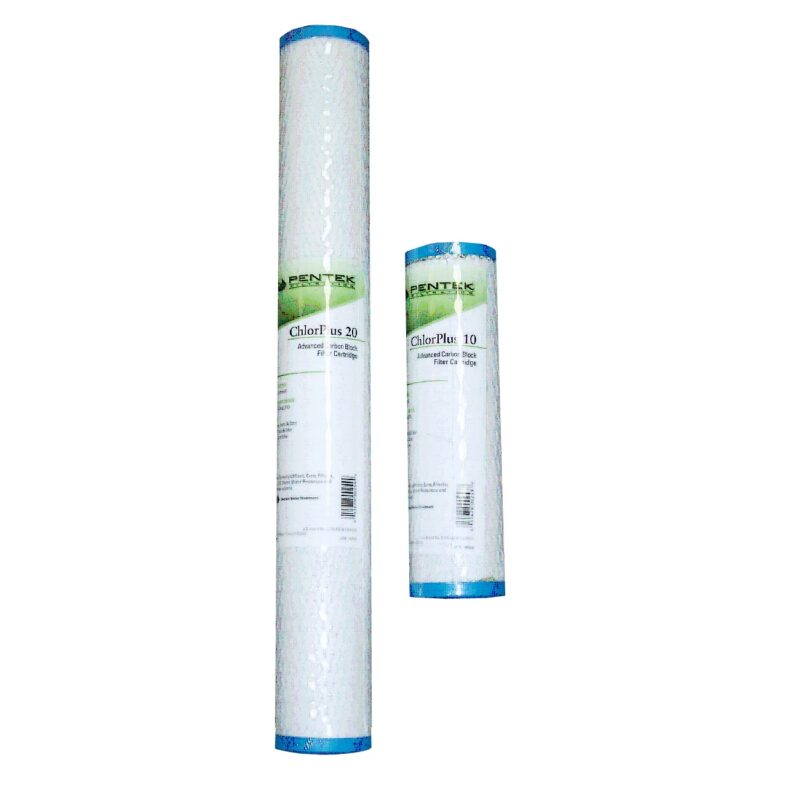

Integrated Pre-Treatment Filter
Smart Monitoring with Real-Time Alarms, System Shutdowns, and Divert to Drain
Programable Standby Flush
High-Efficiency Membranes for Top-Tier Water Quality
Open Frame Design for Ease of Serviceability
Provides Multiple Pre-Treatment, Sample Port, and Clean in Place Connections

Specifications

Pressure Min/Max PSI: 30/80
Temperature: 50 – 90°F
Projected Rejection: 95% – 98%
Recovery: 50% – 75%
Feed Water Temperature: 77°F (Blend Valve Recommended)
Feed Water Hardness as CaCO₃: 12 GPG
Feed water Silca: 40 PPM
Feed Water Turbidity: <1 NTU
Feed Water pH Range: 6.0 to 8.5
Feedwater Iron: 0.1 PPM

Model	AWRO1200	AWRO2400	AWRO4800	AWRO7200	AWRO9600	AWRO12000	AWRO14400	AWRO16800	AWRO19200
Product Flow GPD*	1,200	2,400	4,800	7,200	9,600	12,000	14,400	16,800	19,200
Number of Membranes	1	1	2	3	4	5	6	7	8
Feed Flow GPM	2.5	5	8	12	15	18	22	27	32
Dimensions (WxDXH)	20 x 24 x 61		21 x 24 x 62		21 x 24 x 66	22 x 38 x 67
* Product flow rate varies with temperature and inlet pressure. All models are rated at 77°F with feedwater of 1500 mg/l NaCl @ 55 PSI feed pressure and pH of 7.5. As a safety factor use 60% of the rated capacity when sizing or add blend valve to temper the feedwater.
