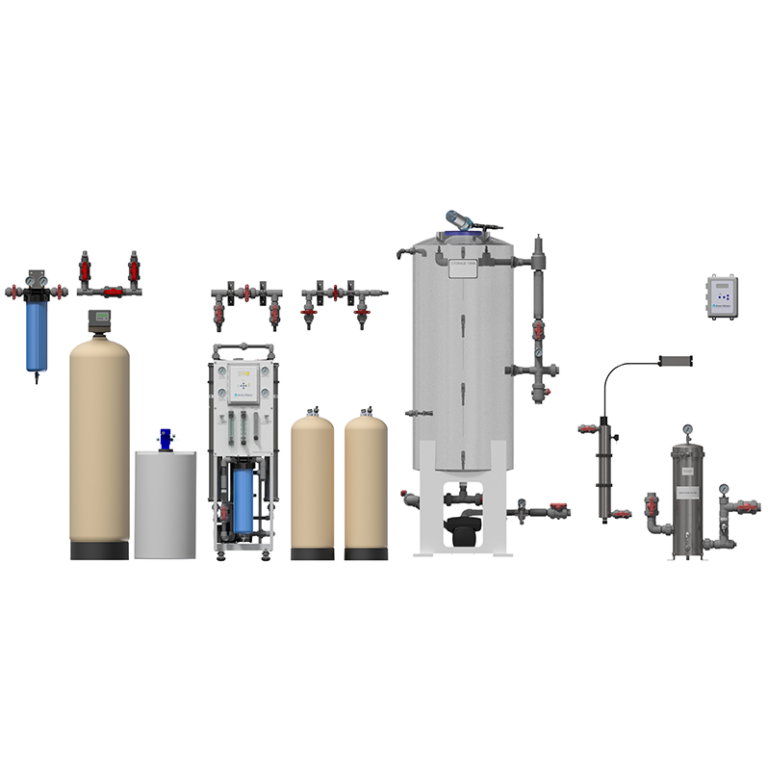

Comprehensive Sterile Processing Water Systems – 7,200 – 14,400 GPD

Water Purification Solutions to Help Achieve the AAMI ST108 Standard

For Applications Requiring 7,200 to 14,400 GPD

With the ANSI/AAMI ST108:2023 standards, water quality has never been more essential for healthcare facilities. AmeriWater’s comprehensive water purification packages are designed to achieve these standards from pre- to post treatment, while meeting your water usage needs. By optimizing water quality, this system improves patient safety and prolongs the life span of medical devices.

Features

Specifications

Certifications

Accessories

Downloads

Features

Carbon Pre-Filter for Chlorine Removal
Sediment Pre-Filter for Particulate Removal
Anti-Scalant Injection Feed to Prevent Hard Water Scale on Reverse Osmosis Membranes
AWRO System with:
– Smart monitoring with real-time alarms and system shutdowns
– Programable standby flush
– High-efficiency membranes for top-tier water quality
– Open frame design for ease of serviceability
Polish DI with Either Silex Deionizer or DI Exchange Tanks Handled by Local DI Exchange Provider
RO and DI Bypass Headers for Continuous Operation During Maintenance or System Shutdown
Storage Tank with Sealed Lid
– Distribution pump sized to meet system requirements with shut down on empty storage tank
– Submicron vent filter
– Distribution loop return manifold
– Pressure relief valve
– Distribution loop return flow meter
– Sample port
– Distribution loop to drain valve
– Internal spray nozzle
Ultraviolet Light
– Controls bacteria proliferation in purified water storage and distribution systems
– Equipped with an online monitor to measure output intensity and alarms when lamp needs replaced
Endotoxin Ultrafiltration
– 0.2 Submicron Endotoxin Cartridge
– Installed post UV to remove endotoxins from the purified water storage and distribution system
Alarm Panel
– Monitors system operating conditions
– Includes RO alarm, low storage tank, and water conductivity
– Remote alarm included for continuous system monitoring outside water room
Included Installation Kit, Water System Label Kit, and AAMI ST108 Validation Water Testing
System can be easily disinfected

Specifications

Drain: Floor Drain or Sink Must be Within 3′ of Unit and Able to Accommodate a Flow Rate of 15 GPM
Feed Water Quality: Potable Drinking Water Standards
Feed Water Temperature: 77°F (Blend Valve Recommended)
Feed Water Flow Minimum: Between 50°F – 90°F
Feed Water Pressure Min./Max.: 30/80 PSI Dynamic
Projected Rejection: > 95% – 98%
Recovery: 50%, Adjustable to 75%

Models (Begins with 00SPD)	7201-30	7200-30	9600-30	14400-30	7200-70	9600-70	14400-70
RO Production Rated Capacity*	7,200 GPD	7,200 GPD	9,600 GPD	14,400 GPD	7,200 GPD	9,600 GPD	14,400 GPD
Number of Membranes	3	3	4	6	3	4	6
Storage Tank Volume	100 Gallons	185 Gallons
Distribution Pump Output	30 GPM @ 30 PSI				70 GPM @ 30 PSI
Minimum Feed Flow (GPM)	12	12	15	22	12	15	22
Dimensions in Inches (WxDxH)	184 x 48 x 87	184 x 48 x 103	189 x 48 x 103		184 x 48 x 103	189 x 48 x 103
* Product flow rate varies with temperature and inlet pressure. All models are rated at 77°F with feed water of 1500 mg/l NaCl @ 55 PSI feed pressure and pH of 7.5. As a safety factor use 60% of the rated capacity when sizing or add blend valve to temper the feed water.
