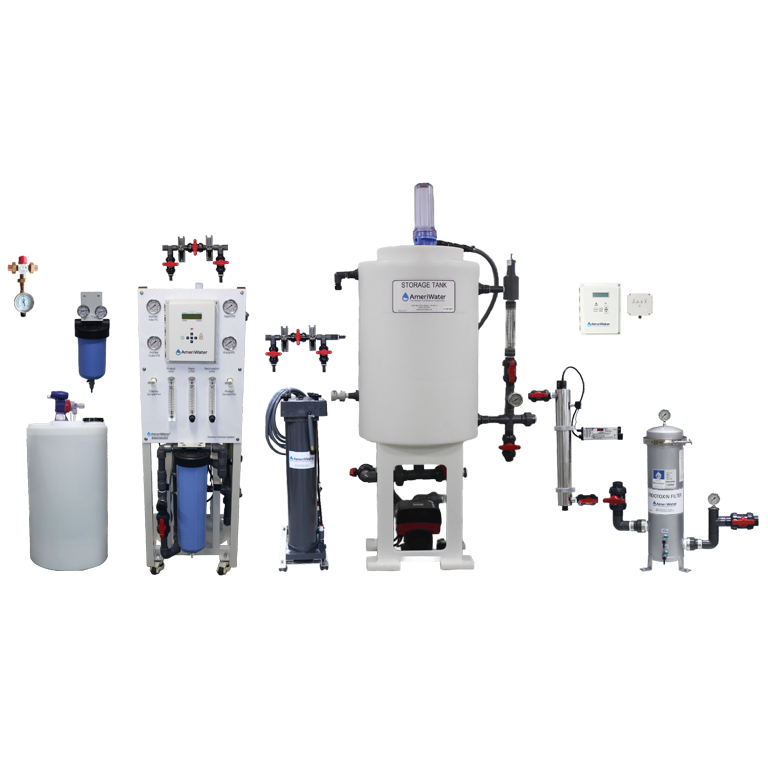

Sterile Processing Water Systems – up to 300 GPH

Sterile Processing Water Systems – up to 300 GPH

Water treatment systems for central sterile processing

For Applications Requiring Up To 300 Gallons Per Hour

AmeriWater’s complete water treatment system for central sterile processing provides high quality low conductivity water for washers, disinfectors, glassware washers, steam boilers and final rinses used in hospitals. They are designed to use a minimum of valuable floor space while providing high quality water. Field proven in medical facilities across North America, AmeriWater’s central sterile water treatment systems are designed to minimize maintenance and deliver greater energy efficiency while providing cleaner water for cleaning, disinfecting, and sterilization.

Features
Specifications
Certifications
Accessories

Features

  • Pre-carbon block filter
  • Reverse osmosis unit purifies your water
  • Anti-scalant feed reduces hard water scale on RO
  • Controller with conductivity feed and product water
  • Simple disinfection cycle
  • Storage tank with sealed lid and distribution pump ensures continuous pure water for your systems
  • Low feed pressure system shutdown / alarm
  • High conductivity alarm
  • Storage tank empty pump shutdown

Specifications

  • Drain: One 1½” Floor Drain or Sink
  • Feed Water Quality: Potable Drinking Water Standards
  • Feed Water Temperature: Between 41°F – 90°F (Ideal 77°F)
  • Feed Water Flow Minimum: 10 GPM
  • Feed Water Pressure Min./Max.: 20/50 PSI
  • Projected Rejection: > 96%
  • Distribution Pump Output: 70 GPM at 30 PSI
  • Electrical:
    • One 115V, 15 Amp Dedicated Circuit, Single Ph
    • One 208V, 15 Amp, Dedicated Circuit, Three Ph
    • One 220V, 15 Amp, Dedicated Circuit, Single Ph
Gallons per hour (GPH) Deionizer Pump Tank Size (GALS) Model
Up to 188* / 300** No High Flow 185 00HC-2030
Yes 00HC-2060
* Gallons per hour are listed at 60% of the rated capacity due to variables such as feed pressure, feed water quality, and temperature.
** By adding the blend valve (00HC-5001) the feed inlet water temperature is maintained at 77F, which increases the RO product output.

Certifications

  • ETL Listed, Conforms to UL Std 61010-1
  • Certified CAN/CSA C22.2 No. 61010-1
  • ISO 13485 Registered Device
  • Seismic OPA-2202-07
